[Please contact us for the up-to-date price]

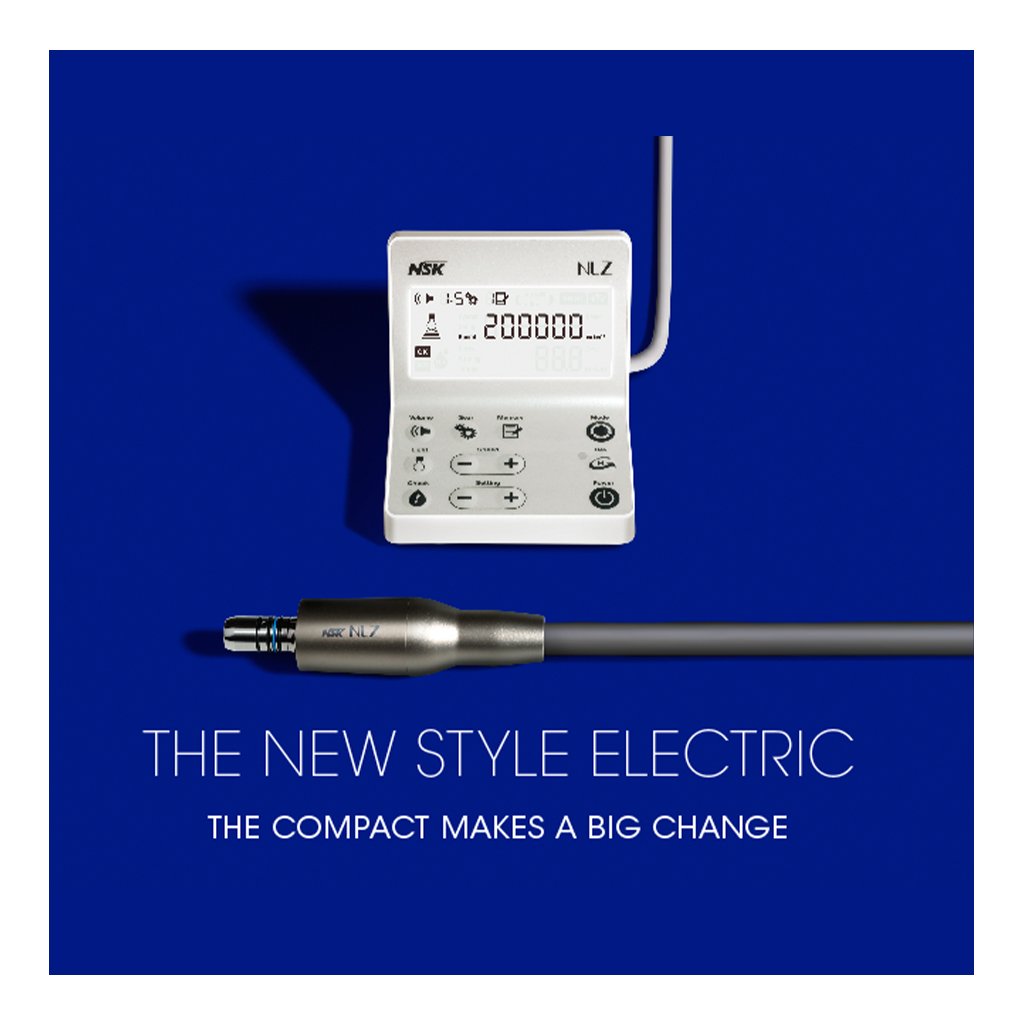

-Now in a more compact size, with higher safety and flexibility for different installation styles, NSK’s all new “NLZ” can help any user of air driven handpieces convert to electric and enjoy the full benefits of this smart system.
-The unique technology of “NLZ” employs an all-new micromotor system and expands the possibilities of dental treatment.
-This original concept from the leading handpiece manufacturer provides cutting-edge features applicable to a wide-range of endodontic treatments with enhanced comfort and safety.
-A big change in treatment environment is brought with only a minor addition to the current equipment in your office.
-With Endo Function
Packing:
1 x NLZ E U (Control Unit & Main Unit)
1 x NE180 (AC Adaptor)
1 x NLZ (Motor)
1 x NLZ CD (Motor Cord)
1 x NLZ U Bracket
-
Introduction of NLZ
Technology & Function:
Powerful
The conventional magnet rotor has been replaced with an improved magnet rotor. More powerful rotation is achieved in the same amount of space by reducing weak magnetic areas.
Efficient
In this unique technology, the water and air lines that used to bypass the motor have now been integrated with the motor. This new, more efficient configuration makes maximum use of the limited space and is lighter and more powerful than before.
Less Heat
NLZ employs a simple non-layered coil instead of a standard layered coil. The coils are as compact as possible, shortening the pathway for heat generating current. As a result it generates less heat without reducing the output power.
Simplified Pipe Configuration
Conventional products include several pipes, which crank the water flow supplied from the rear of the motor. The NLZ uses a simple straight pipe design instead of a crank, reducing the risk of water clogging in the rear section of the motor.
Contaminants Are Stopped by a Microfilter
There is a water filter with 0.3 mm diameter mesh fitted within the tubing connector at the back of the main unit to catch debris and foreign particles in the water and prevent clogging.
Endo Torque Calibration Function (NLZ E Only)
Performing the “Contra-Check Function” also enables torque calibration. This function measures the no-load current values and corrects the torque accordingly, resulting in greatly enhanced safety in endodontic treatment.
*This function cannot completely absorb the individual difference of the actual motor and contra-angles.
-
-
- No manual calibration necessary
- Auto-detects the apex accurately in any condition
- High-precision root canal measurement generated by using SmartLogic
-
Advanced Apex Locator
3 Color LCD
1. When the file is inserted into the root canal, a bar graph displays its progress, with the bar’s position reflecting the position of the file as it descends.
2. As the tip of the file approaches the root apex (0.5~) the bar graph turns blue, and the audio alert sound increases in pitch and speeds up in tempo to notify the user that the file is entering the Zone of Precision.
3. When the tip of the file reaches the minor apical diameter, the bar graph display reads 0.0, and the alert sound changes to a continuous tone.
4. If the tip of the file goes past the apex, the unit issues a fast and continuous alert sound while the word APEX appears in red and OA (Over Apex) is displayed in blue.Includes:
- Control Unit
- iPexII Probe (1.8 m)
- iPexII File Clip (3 pcs.)
- Lip Hook (3 pcs.)
- AAA Manganese Dry Batteries (3 pcs.)
- iPexII Tester
-
Specifications
Power Supply : For 1.5 V AAA (LR03 or R03) Batteries
Continuous Use : Appx. 60 Hours
Dimensions : W 60 x D 60 x H 86 mm
Weight : 76 g (Unit without Batteries)
- Memorise exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers
- Auto-reverse features 3 working modes - autoreverse on, auto-stop, auto-reverse off
-
Ultra-slim & Compact Handpiece with Torque Control & Auto Reverse
ENDO-MATE DT is smart enough to memorise exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers. Its auto-reverse features 3 working modes - autoreverse on, auto-stop, auto-reverse off. The motor reacts when load reaches the preset level of torque. With on-off switch, it offers flexibility of pedal-free operation (optional foot control unit available), while providing convenience of full portability with two-way power supply, either AC or battery driven.
Includes:
- Control Unit
- Motor and Cord
- AC Adaptor
- Handpiece Stand
- MPAS-F20R Head (20:1)
-
Specifications
Power Supply : AC 120 V 60 Hz or 230 V 50/60 Hz and Battery pack
Number of Programs : 9
Max Torque : 7 Ncm (When Using 20:1 Head)
Speed Range : 100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads)
Charge / Continuous Use : 5 h / 2 h (Depending on Workload)
Dimensions : W 92 x D 148 x H 124 mm
Unit Weight : Unit 456 g / Motor Handpiece & Cord 92 g
-
Cordless Endodontic Handpiece with Torque Control and Auto Reverse
-
Includes:
- MP-F16R Head
- ENDO-MATE TC2 Motor
- Battery Charger
-
Specifications
Speed Range : 2,000-9,000 min-1
Charge : 1.5 h (Depending on workload)
Continuous Use : 1.2 h (Depending on workload)
- Cordless endo motor with apex locator integrated
- Preset programs for FKG files: RACE EVO, R-Motion or XP-endo
-
CORDLESS ENDO MOTOR with APEX LOCATOR
The Rooter® Universal is a cordless endodontic motor with apex locator. The device has 3 working modes for maximum ease of use:
- Single Endo motor mode
- Endo motor with apex locator mode
- Single apex locator mode
Ease and Comfort of use in your hands:
- Cordless endo motor with apex locator integrated
- Low weight and slimline design
- Well-balanced device ergonomics
- Perfect handling for left and right-handed users
- Switchable display guarantees easy operation for both left and right-handed users
- 360° contra-angle rotation
- Compact contra-angle head geometry
- Inductive charging
- LED light
-Auto Reverse function
Free Rotary & Reciprocation modes:
- 4 free Rotary file systems memories
- 1 free Reciprocating file system memory
Easy-to-program torque and speed settings
Variable file speeds and torque values:
- Speed: 150 – 1’000 rpm
- Torque: 0.6 – 3.5 Ncm
-
-
DiaDent DUO-PEN Cordless Warm Vertical Compaction Device Each
DiaDent DUO-PEN Cordless Warm Vertical Compaction Device Each
Compaction Device
- Easy-to-read display with temperature setting and battery indicator
- Durable color-coded heating condensers available in 5 sizes
- Replaceable lithium-ion battery
Includes:
- 1 x Duo-Pen Handpiece
- 1 x Duo-Charger
- 1 x Heating condenser #.04-50
- 1 x Heating condenser #.06-50
- 1 x Power adapter
- 1 x AC Power cord
- 200 x Disposable sheaths (Box)
Backfill Obturation Device
- Easy-to-read display window and power button on both sides of the handpiece
- Strong and bendable Duo-Gun tips available in 23G and 25G
- Ergonomic design allows hand trigger operation with minimal effort
Includes:
- 1 x Duo-Gun Handpiece
- 1 x Duo-Charger
- 4 x 23 g GP obturation tips
- 2 x Plunger O-Ring Assembly
- 1 x Plunger set
- 1 x Multi tool
- 1 x Scrubbing brush
- 1 x Power adapter
- 1 x AC Power cord & battery
- 2 x Safety caps
DiaDent DIA-DUO Cordless Warm Vertical Compaction + Backfill Obturation System Regular Kit Each
DiaDent DIA-DUO Cordless Warm Vertical Compaction + Backfill Obturation System Regular Kit Each
Cordless Warm Vertical Compaction + Backfill Obturation System.
Includes:
- 1 x Duo-Gun Handpiece
- 1 x Duo-Pen Handpiece
- 1 x Duo-Charger
- 1 x Heating condenser #.04-50
- 1 x Heating condenser #.06-50
- 1 x Duo-Pen battery
- 1 x Duo-Gun battery
- 200 x Disposable sheaths (Box)
- 4 x 23 g GP obturation tips
- 2 x Safety caps
-
Perfectly and tightly sealed root canals after warm obturation technique with Dia-Duo.
-
-
Endodontic Activator
Includes:
- 1 x Handpiece
- 1 x Charger
- 2 x Ultrasonic tips
- 1 x Adapter
- 1 x Wrench
- 1 x Power cord
